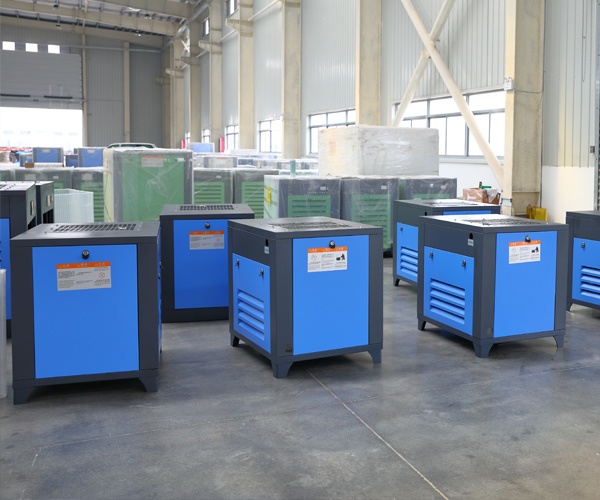

Low Pressure Screw Air Compressor

关注度: 4783

产品概要：

Features of the unit: 1. The energy-saving effect is obvious: the exhaust pressure of the unit is 3BAR-5BAR. Compared with the compressor of 7-8BAR, the energy saving electricity cost is about 30%, so your operating cost will be greatly reduced, and low carbon The purpose of reducing emissions. 2. Superior performance: Most of the components are produced by the company, and the oil sub-barrel and oil sub-core are specially configured, using super-cooled lubricating oil. 3. Convenient on-site installation: All components are equipped in the unit, and no additional on-site installation is required, and it can be put into use immediately. Model

马上询价

QQ咨询
想了解更多玉达空压机产品详情，请直接联系我们，我们将给您最详细的设备方案和最优惠的价格！

所属分类

Screw Air Compressor

数量

-

+

库存:

0



1

产品描述

参数

Low pressure screw compressor series is a new comressor produced according to the national policy of energy saving, emission reduction and environment protection, it changes the traditional compressor with relatively high pressure. It transfers the compressed air after pressure reduction to the air consumer, which wastes large amounts of energy.

The low pressure screw compressor can be distributed according to the air pressure of the user, to satisty the process flow with minimum energy, the manufacturing cost of your product can be largely improved, for example, if you process system only needs 3 bar pressure and the used compressor can provide 7 bar, then it needs to be reduced to 3 bar, it may take two times power to satisty your process system, you can choose our low pressure screw compressor only to consume halt of the power, and the air pressure in the process system can still be ensured., thus realizing energy saving the emission reduction.

型号 Model	YD-15AZ	YD-20AZ	YD-25AZ	YD-30AZ	YD-40AZ	YD-50AZ	YD-60AZ	YD-75AZ	YD-100AZ	YD-120AZ	YD-150AZ	YD-175AZ	YD-200AZ	YD-250AZ	YD-280AZ	YD-300AZ

功率(Kw) Power	11	15	18.5	22	30	37	45	55	75	90	110	132	160	185	200	220

压力（Mpa) Air Pressure	0.5
	0.4
排气量(m³/min) Air Capacity	2.4	3.0	3.6	5	6.3	7.0	10.0	13.0	16.0	20.6	24.6	28.4	33.0	36.6	42.2	51.0
	3.1	3.7	5.2	6.5	7.2	10.0	13.2	16.2	20.8	24.8	28.6	33.2	37.0	42.4	51.2
噪音（Db(A)) Noise Level	68±2		70±2		72±2		74±2		76±2		78±2		80±2		82±2

出气管径 Outlet size	G1″		G1½″		G2″		G2½″		G3″/DN100		DN125		DN150		DN150

加油量（L） The amount of fuel	18±1		25±1		56±1		94±1		126±1		196±1		196±1		196±1

外形尺寸（长×宽×高）mm Dimensions	1380		1500		1900		2000		2500		3000		3200		3200
	850		1000		1250		1250		1470		1700		1980		1980
	1150		1320		1600		1670		1840		1950		2150		2150
重量（Kg) Weight	510	550	740	850	1200	1300	1450	2150	2360	3100	4150	4300	5100	5800
